Rosetta SM

Why choose Rosetta SM

Key features 01

Best-Seller, Rosetta SM

Key features 02

Optimized Strength for Both Milling and Durability

Key features 03

Innovative pioneer – Φ 98 DISK

Key features 01

Best-Seller, Rosetta SM

This website is intended solely for informational purposes.
No products are sold or offered for sale through it.

HASS products are available for purchase only in countries where the applicable regulatory approval or registration has been obtained, and only through authorized distributors within each respective country.

For purchase inquiries, please contact the authorized distributor in your country.


Rosetta® SM



 Launched well over a decade ago, Rosetta SM reflects HASS’s long-standing dedication to quality dental ceramics.

As one of HASS’s core lithium disilicate product lines, Rosetta SM is widely recognized by dental professionals for its consistent processing performance and esthetic qualities.

Backed by years of application data, Rosetta SM provides a reliable lithium disilicate solution—delivering predictable outcomes for dental laboratories and clinics worldwide

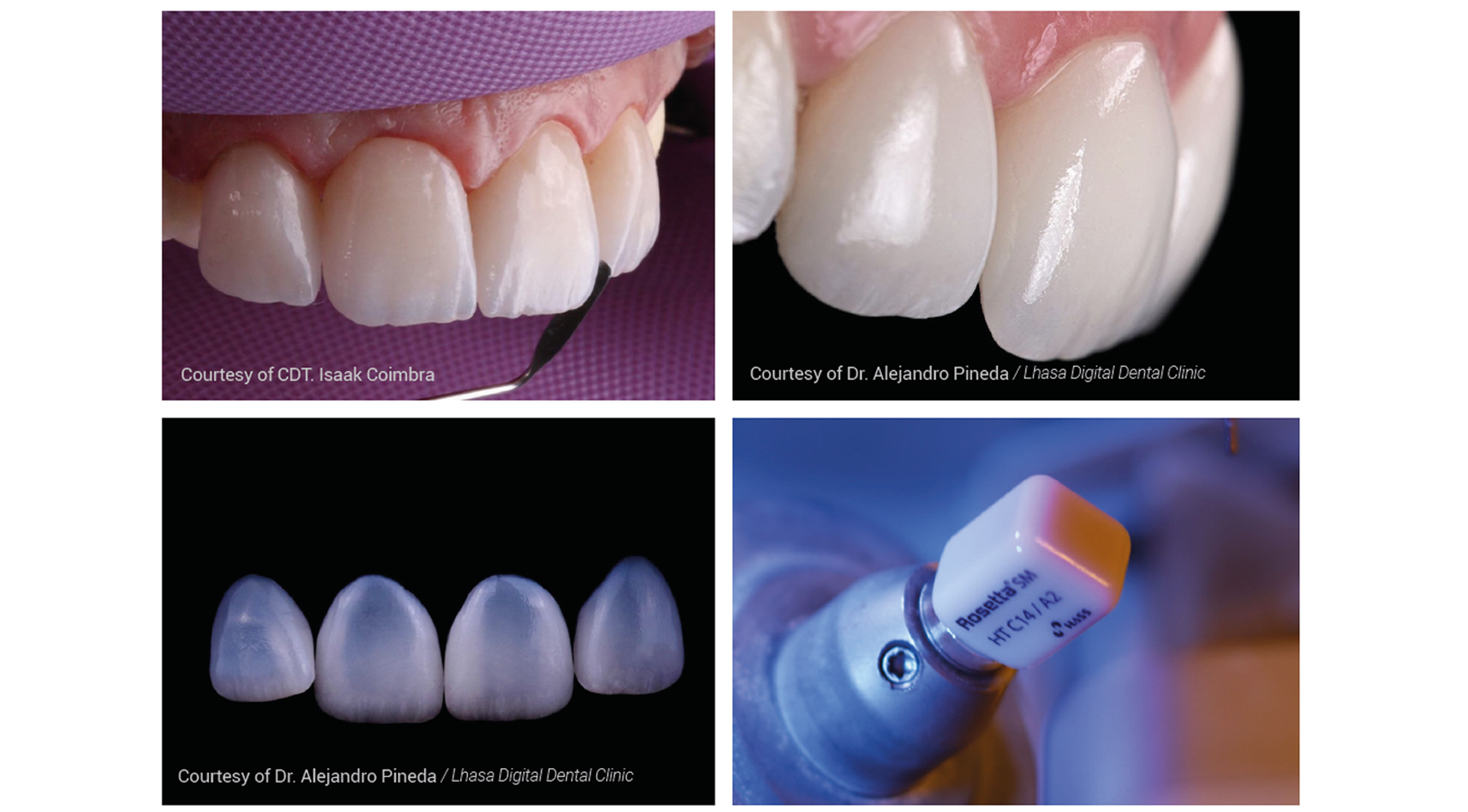

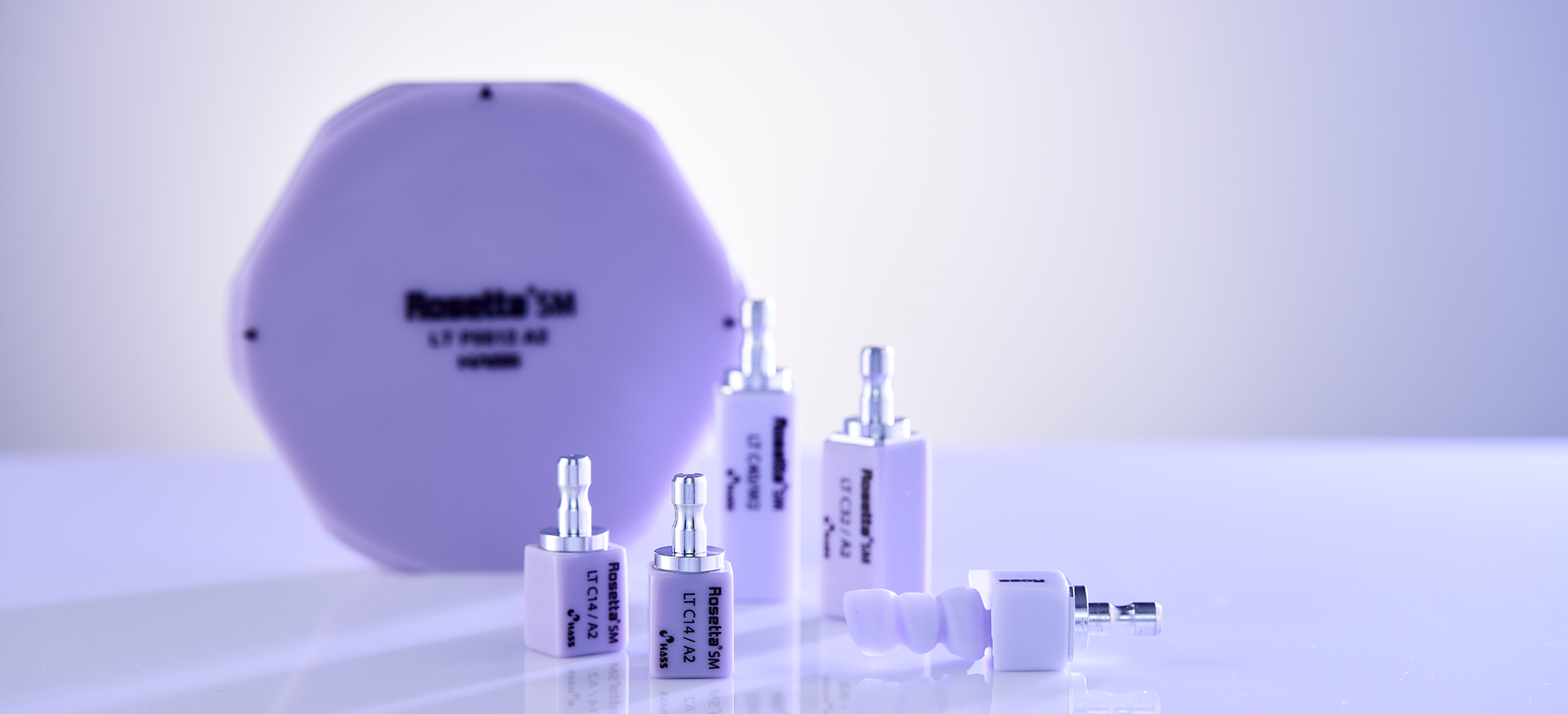

Rosetta SM dental veneer clinical cases and CAD/CAM block
Rosetta SM dental veneer clinical cases and CAD/CAM block

Key features 02

Optimized Strength for Both Milling and Durability

Rosetta SM is engineered for both ease of processing and reliable clinical performance.
With a pre-crystallization flexural strength of 200 MPa, it is designed for smooth and efficient milling with minimal tool wear.
After crystallization, the strength increases to 440 MPa, providing dependable durability for a wide range of restorations, including crowns, inlays, onlays, and veneers.
This balance of workability and final strength makes Rosetta SM a practical choice for both dental clinics and labs.

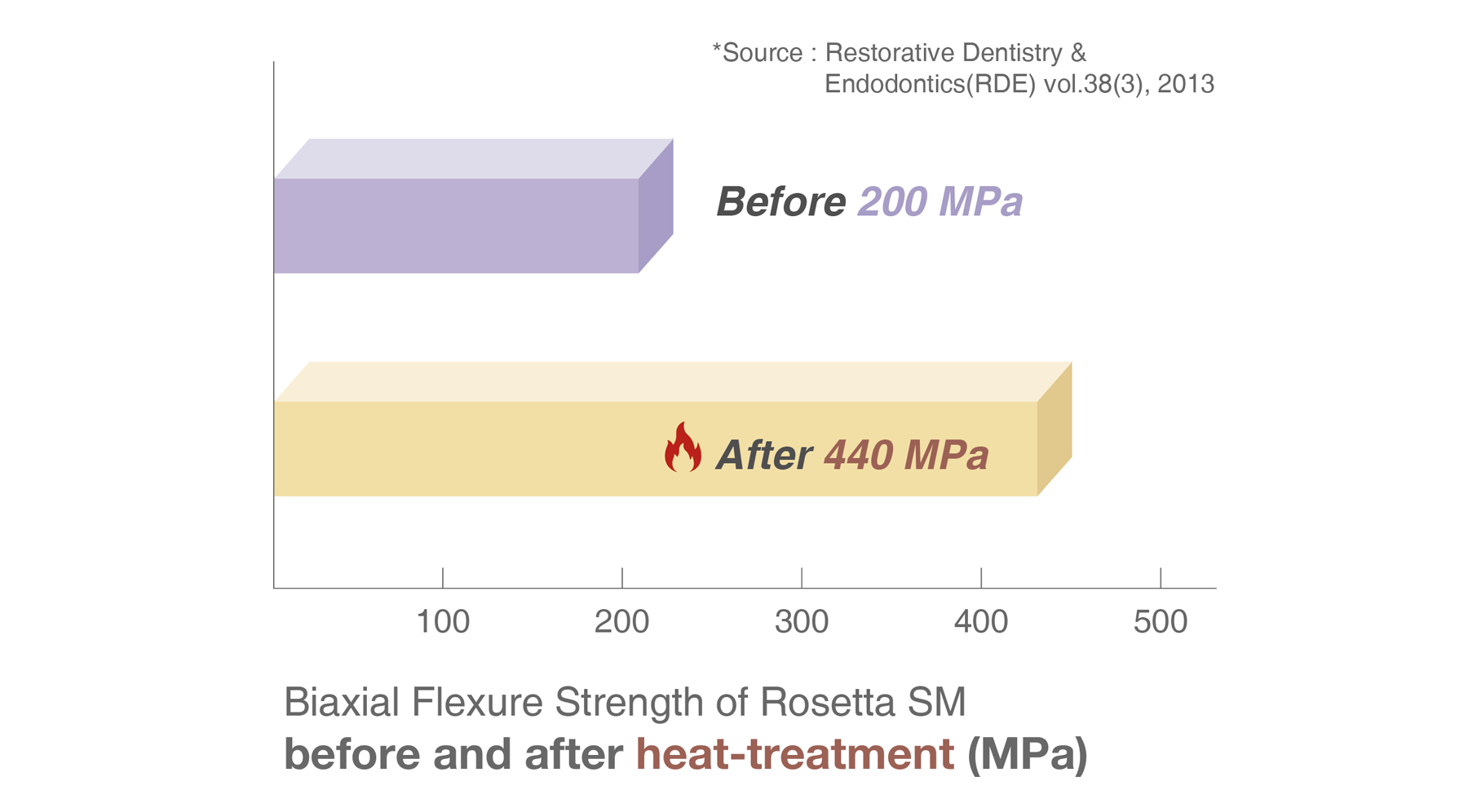

Biaxial flexure strength graph of Rosetta SM before and after heat treatment
Biaxial flexure strength graph of Rosetta SM before and after heat treatment

Key features 03

Innovative pioneer – Φ 98 DISK

Rosetta SM is also available in a disc-type format, designed for high-throughput workflows in dental labs.
With one disc, up to 30 restorations can be milled, allowing technicians to maximize productivity and reduce material handling time.

This efficient setup makes Rosetta SM an ideal solution for batch processing, helping laboratories optimize their schedule without compromising quality.

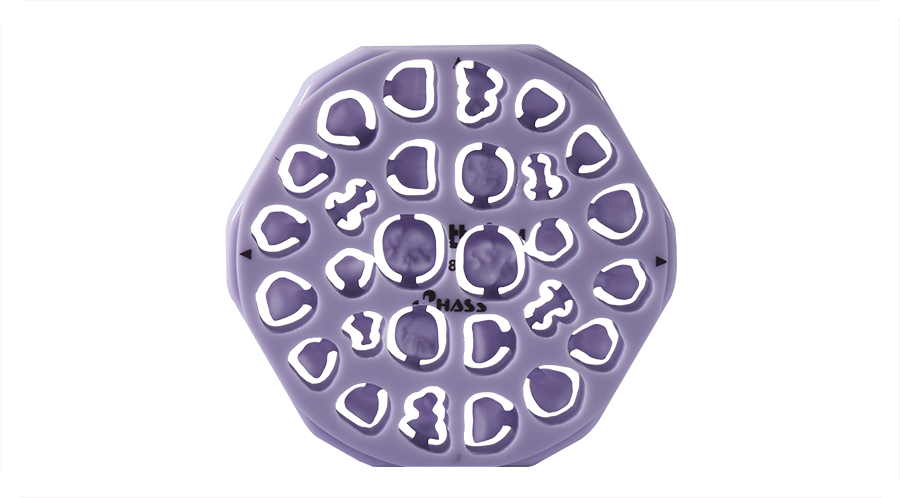

Rosetta SM Disk
Rosetta SM Disk

See the Results. Trust the Material.



Rosetta SM dental veneer restorations fitted on a dental stone model
Rosetta SM dental veneer restorations fitted on a dental stone model

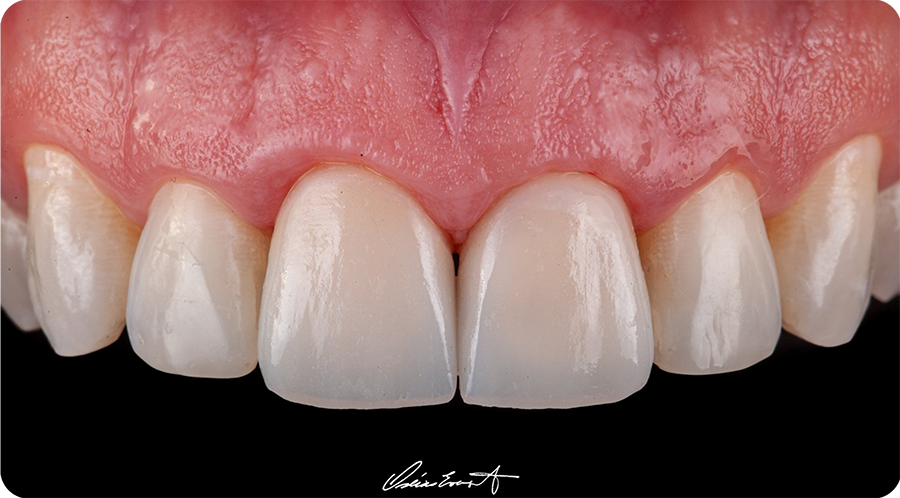

Clinical view of Rosetta SM anterior veneer restorations integrated with natural teeth
Clinical view of Rosetta SM anterior veneer restorations integrated with natural teeth
Clinical view of Rosetta SM anterior veneer restorations integrated with natural teeth
Clinical view of Rosetta SM anterior veneer restorations integrated with natural teeth



Product Resources (Brochure / Manual / Others)





[1] https://doi.org/10.5395/rde.2013.38.3.134, Suk-Ho Kang, Ho-Hyun Son*, Flexural strength and microstructure of two lithium disilicate glass ceramics for CAD/CAM restoration in the dental clinic. Restorative Dentistry & Endodontics, 2013.08.23.

[2] https://doi.org/10.14815/kjdm.2014.41.1.19, Suk-Ho Kang, Ho-Hyun Son*, Physical/mechanical properties and microstructure of dental lithium disilicate ceramics for chairside CAD/CAM restoration. Korean Journal of Dental Materials, 2014.05.17.

[3] https://doi.org/10.1007/s10266-019-00460-4, Chung-Ha Lim, Tae-Sung Bae*, Evaluation of fracture strength for single crowns made of the different types of lithium disilicate glass-ceramics. Odontology, 2019.09.28.

[4] https://doi.org/10.3390/app9091798, Keunbada Son, Kyu-Bok Lee*, Comparative Study of the Trueness of the Inner Surface of Crowns Fabricated from Three Types of Lithium Disilicate Blocks. Applied Sciences, 2019.04.29.

[5] https://doi.org/10.2341/19-089-L, Luís H. Raposo, Avenida Pará*, Influence of Computer-aided Design/Computer-aided Manufacturing Diamond Bur Wear on Marginal Misfit of Two Lithium Disilicate Ceramic Systems. Operative Dentistry, 2019.12.20.

[6] https://doi.org/10.1590/1807-3107bor-2020.vol34.0004, Lucas do Nascimento Tavares, Flávio Domingues das Neves*, Microstructural and mechanical analysis of two CAD/CAM lithium disilicate glass-reinforced ceramics. Brazilian Oral Research, 2019.09.02.

[7] https://doi.org/10.4047/jkap.2020.58.4.313, Keunbada Son, Kyu-Bok Lee*, Effect of machining precision of single ceramic restorations on the marginal and internal fit. The Journal of Korean Academy of Prosthodontics, 2020.10.26.

[8] https://doi.org/10.3390/app10051858, Kunhee Lee, Kyu-Bok Lee*, Effects of Trueness and Surface Microhardness on the Fitness of Ceramic Crowns. Applied Sciences, 2020.03.09.

[9] https://doi.org/10.1590/1678-7757-2020-0122, Karina Barbosa Souza, Dayanne Monielle Duarte Moura*, Effect of different surface treatments and multimode adhesive application on the Weibull characteristics, wettability, surface topography and adhesion to CAD/CAM lithium disilicate ceramic. Journal of Applied Oral Science, 2020.07.21.

[10] https://doi.org/10.21608/edj.2020.42658.1258, Shereen Kotb Salem*, Effect of Thermodynamic Aging on Colour Stability, Roughness and Flexural Strength of Two CAD/CAM Lithium Disilicate Glass Ceramics. Egyptian Dental Journal, 2020.10.

[11] https://doi.org/10.1016/j.prosdent.2021.09.034, Seung-Sik Choo, Lee-Ra Cho*, Fatigue resistance of anterior monolithic crowns produced from CAD-CAM materials: An in vitro study. Journal of Prosthetic Dentistry, 2021.12.31.

[12] https://doi.org/10.26389/AJSRP.S160621, Mahmud Shawqi Muhammad Ahmad, Mahmoud Showky Mohammed Ahmed*, Fracture Resistance Under Cyclic Loading of Lithium Disilicate Onlays Versus Rosetta Onlays Restoring Premolars (In Vitro Study). Journal of Medical and Pharmaceutical Sciences, 2021.12.27.

[13] https://doi.org/10.1155/2022/5896511, Hazel P. R. Corado, Carlos N. Elias*, Flexural Strength of Vitreous Ceramics Based on Lithium Disilicate and Lithium Silicate Reinforced with Zirconia for CAD/CAM. International Journal of Biomaterials, 2022.02.02.

[14] https://doi.org/10.9790/0853-2106074162, Shorouk Hossam Eldin Hussien*, Translucency & Flexural strength of three lithium disilicate ceramic materials for CAD CAM restorations (In Vitro Study). Journal of Dental and Medical Sciences, 2022.06.24.

[15] https://doi.org/10.4047/jap.2022.14.5.324, Joon Hee Park, Eun-Jin Park*, Translucency and masking ability of translucent zirconia; comparison with conventional zirconia and lithium disilicate. Journal of Advanced Prosthodontics, 2022.10.28.

[16] https://doi.org/10.21608/mjd.2023.301985, Sara R. Khouri*, Marginal Fit of Veneers Made From Different Lithium Disilicate CAD/CAM Materials. Mansoura Journal of Dentistry, 2023.11.21.

[17] https://doi.org/10.4103/jpbs.jpbs_331_24, Sherif El Sayed Sultan*, In vitro assessment of the fracture resistance of Different Prosthodontic Materials for Fixed Dental Prostheses. Journal of Pharmacy and Bioallied Sciences, 2024.06.08.

[18] https://doi.org/10.1590/0103-6440202405669, Bruno Delgado Clerot, Ana Rosa Costa*, Effect of hydrofluoric acid concentration and aging on the bond strength ceramics to a resin cement. Brazilian Dental Journal, 2024.07.22.

[19] https://doi.org/10.21608/edj.2024.323743.3235, Abdelrahman Badran*, Fracture Resistance of CAD/CAM Lithium Disilicate Versus Reinforced Composite Occlusal Veneers with Two Preparation Designs (An in vitro study). Egyptian Dental Journal, 2025.01.10.

[20] https://doi.org/10.17219/dmp/171899, Anselmo A. Simionato, Renata Cristina Silveira Rodrigues*, Effects of processing techniques of monolithic lithium disilicate ceramic on wear resistance against zirconia antagonist. Dental and Medical Problems, 2025.04.29.
[21] https://doi.org/10.3390/ceramics9080085, Yar Mohammed*, Influence of Silane Coupling Agent Application Techniques on the Interfacial Properties and Shear Bond Strength of Two Veneer Preparation Designs: An In Vitro Study. Ceramics, 2026.09.07.

Reference Articles] Rosetta SM

Reference Articles] Rosetta SM

: CAD/CAM system

: English

: 208KB

: pdf

Download

Scientific Data] Amber Mill

Scientific Data] Amber Mill

: CAD/CAM system

: English

: 1267KB

: pdf

Download

Reference Articles] Amber Mill

Reference Articles] Amber Mill

: CAD/CAM system

: English

: 233KB

: pdf

Download

Reference Articles] Amber Mill Direct

Reference Articles] Amber Mill Direct

: CAD/CAM system

: English

: 211KB

: pdf

Download

Reference Articles] Amber Mill Q

Reference Articles] Amber Mill Q

: CAD/CAM system

: English

: 193KB

: pdf

Download

Reference Articles] Amber Mill H

Reference Articles] Amber Mill H

: CAD/CAM system

: English

: 183KB

: pdf

Download

HASS meets highest demands for aesthetic restorati

HASS meets highest demands for aesthetic restorati

: CAD/CAM system

: English

Articles

HASS launches Amber Mill Direct for faster chairsi

HASS launches Amber Mill Direct for faster chairsi

: CAD/CAM system

: English

Articles

HASS Bio announces global launch of Amber Mill H

HASS Bio announces global launch of Amber Mill H

: CAD/CAM system

: English

Articles

Available Shades

What shades and translucencies does Rosetta SM come in?

Rosetta SM shade chart by translucency: HT, LT, MT and MO
Rosetta SM is available in 45 shades across 4 translucency levels: HT 19, LT 19, MT 2 and MO 5.
Rosetta SM translucencyShadesNumber of shades
HT (High Translucency)W1, W2, W3, W4, A1, A2, A3, A3.5, B1, B2, B3, B4, C1, C2, C3, C4, D2, D3, D419
LT (Low Translucency)W1, W2, W3, W4, A1, A2, A3, A3.5, B1, B2, B3, B4, C1, C2, C3, C4, D2, D3, D419
MT (Medium Translucency)W1, A12
MO (Medium Opacity)MO 0, MO 1, MO 2, MO 3, MO 45



Product Line-up

What sizes is Rosetta SM available in?

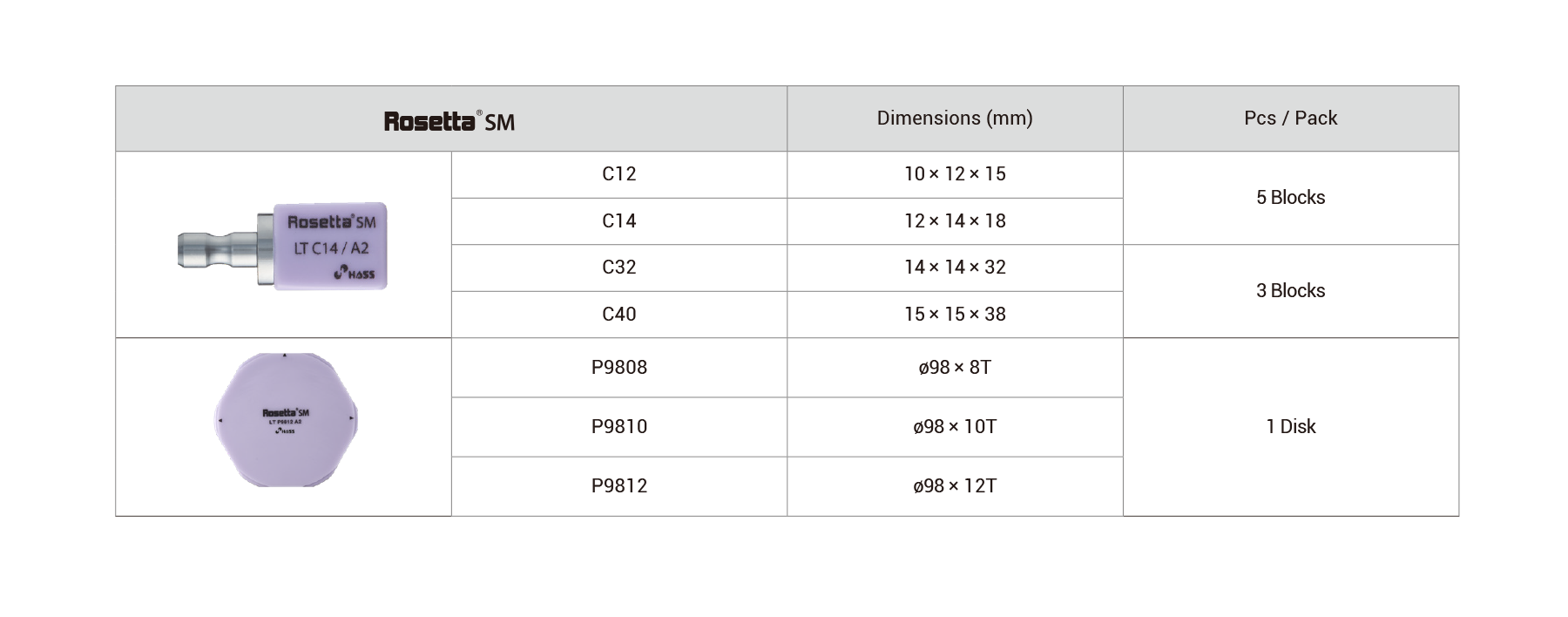

Rosetta SM block and disk sizes, dimensions and pack quantities table
Rosetta SM is available in 4 block sizes (C12, C14, C32, C40) and 3 disk sizes (H9808, H9810, H9812, ø98 mm).
Rosetta SM typeSizeDimensions (mm)Pcs / Pack
BlockC1210 × 12 × 155 blocks
BlockC1412 × 14 × 185 blocks
BlockC3214 × 14 × 323 blocks
BlockC4015 × 15 × 383 blocks
DiskH9808ø98 × 8 (thickness)1 disk
DiskH9810ø98 × 10 (thickness)1 disk
DiskH9812ø98 × 12 (thickness)1 disk



Recommended Crystallization Schedule

What is the crystallization schedule for Rosetta SM?

Rosetta SM recommended crystallization schedule for PROGRAMAT and FOCUS furnaces
Rosetta SM is crystallized at a firing temperature of 840 °C with a holding time of 10:00 min (recommended schedule for PROGRAMAT and FOCUS furnaces).
Rosetta SM crystallization parameterValue
Stand-by temperature (B)400 °C
Closing time (S)3:00 min
Heating rate (t1)60 °C
Firing temperature (T1)840 °C
Holding time (H1)10:00 min
VAC1 / VAC2550 / 840 °C
Long-term cooling (L)700 °C
Cooling time (tl)0

Please follow the recommended Rosetta SM crystallization schedule for best results. The name of the menu on the schedule may vary depending on the furnace's model.

Note: There may be a slight difference between the displayed temperature and the actual temperature of each furnace. Before you heat-treat Rosetta SM blocks, please verify that the recommended schedule is suitable for the furnace being used.

If the shape of a Rosetta SM restoration changes during crystallization heat treatment, reduce the final temperature by 10–15 °C.



FAQ


Want to learn more about Rosetta SM?

Check out the frequently asked questions below.







Question 1 of Rosetta SMDoes Rosetta SM have an MT translucency?

Answer 1 of Rosetta SM

Two shades are available: W1 and A1.









Question 2 of Rosetta SMDoes Rosetta SM have an opaque translucency?

Answer 2 of Rosetta SM

Yes, Medium Opacity (MO 0–4, 5 shades) is available.









Question 3 of Rosetta SMApproximately how many restorations can be milled from a Rosetta disk?

Answer 3 of Rosetta SM

It depends on the size of the restorations. In general, about 24 restorations can be milled.









Question 4 of Rosetta SMWhat are the shrinkage rates of Amber Mill and Rosetta SM?

Answer 4 of Rosetta SM

Rosetta SM 0.04%, Amber Mill 0.05%



















*

*

*

*

*
